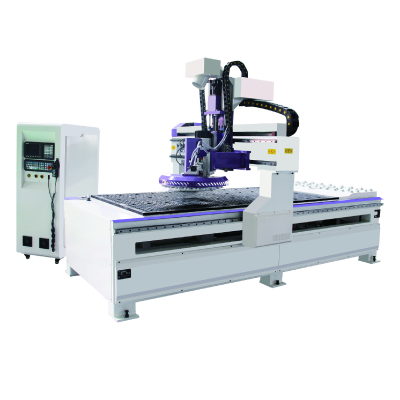

YG-1325A-20

YG-1325A-20

  • Min.Order Quantity: 1 Set
  • Supply Ability: 100 Sets per Month
  • Port: qingdao port
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2014-06-24
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  jinan
  • Brand Name:  Eagle
  • Model Number:  YG-1325A-20

Effective range

2500×1260×200mm

Process size

2440×1240×200mm

Stroke

2500×1250mm

Transmission

X/Y/Z Wire rod

Table structure

Double surface vacuum adsorption

Spindle Power

9KWItaly

Max Spindle Speed

24000r/min

Max Speed

45m/min

Max Working speed

25m/min

 Bamboo hat type knife

The bamboo hat

Knife library capacity

20

Drive system

Japan yaskawa

Working voltage

AC380/3PH/50HZ

Operating system

Taiwan SYNTEC

Feeding method

automatic

Weight

4800KG


  • Place of Origin:  jinan
  • Brand Name:  Eagle
  • Model Number:  YG-1325A-20

Effective range

2500×1260×200mm

Process size

2440×1240×200mm

Stroke

2500×1250mm

Transmission

X/Y/Z Wire rod

Table structure

Double surface vacuum adsorption

Spindle Power

9KWItaly

Max Spindle Speed

24000r/min

Max Speed

45m/min

Max Working speed

25m/min

 Bamboo hat type knife

The bamboo hat

Knife library capacity

20

Drive system

Japan yaskawa

Working voltage

AC380/3PH/50HZ

Operating system

Taiwan SYNTEC

Feeding method

automatic

Weight

4800KG
